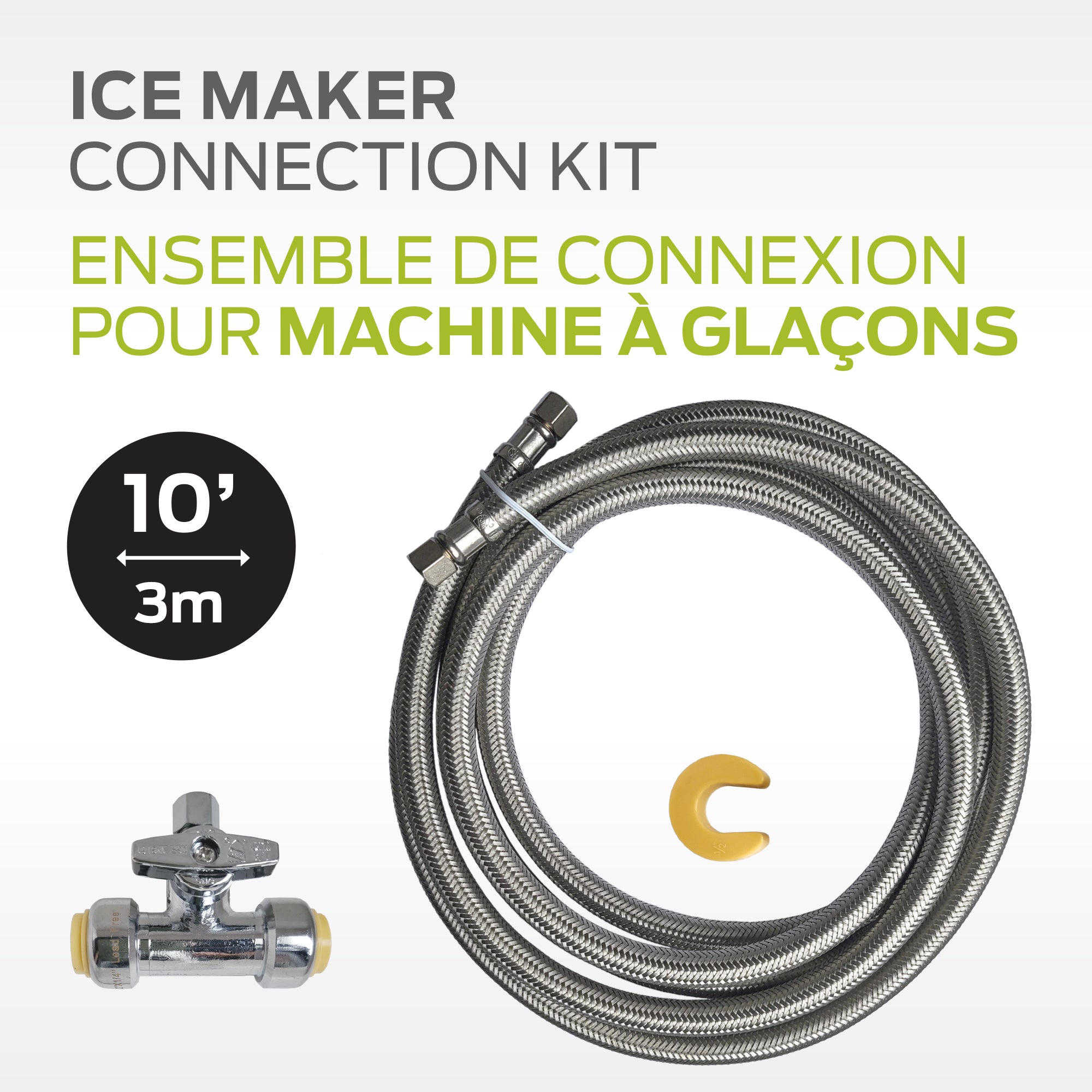

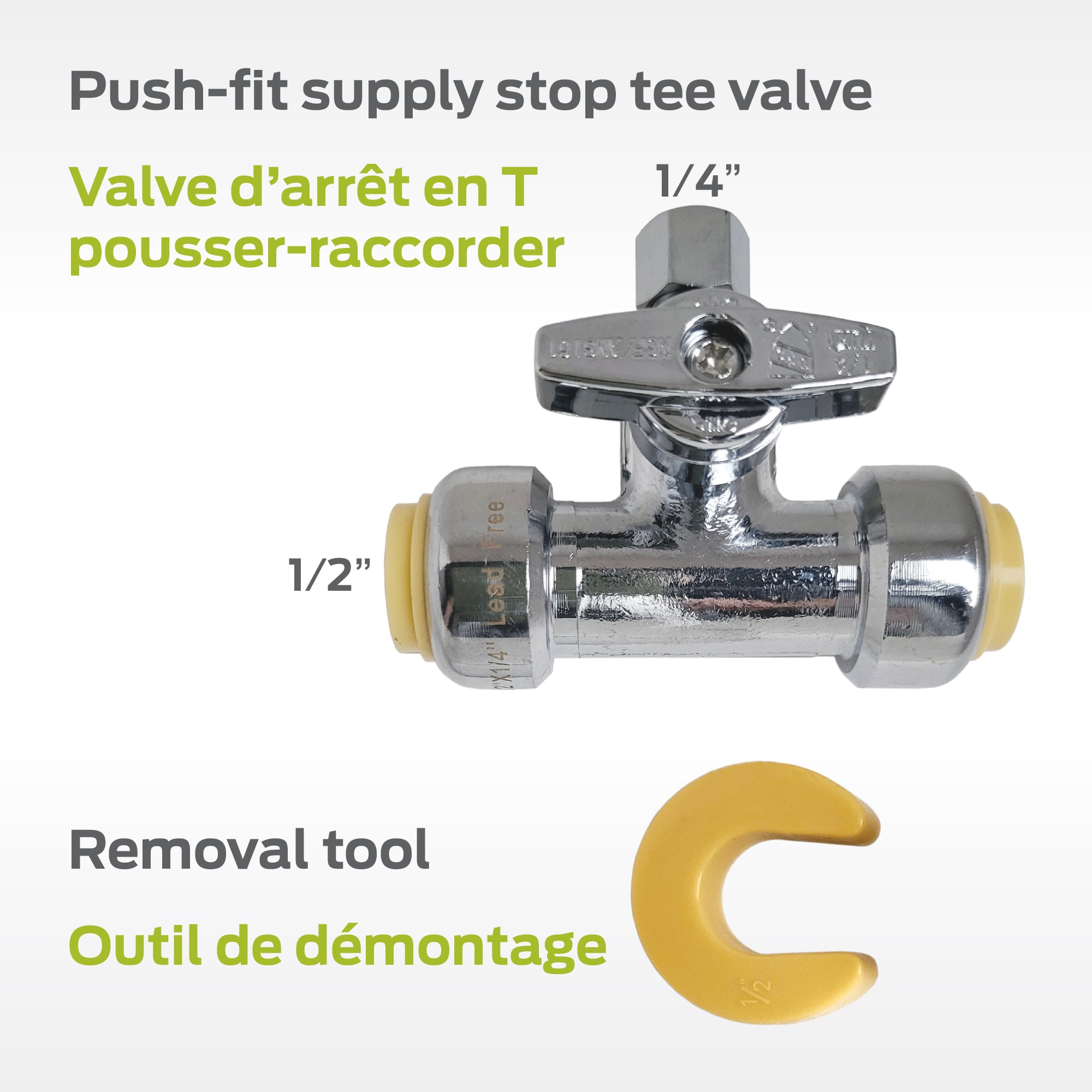

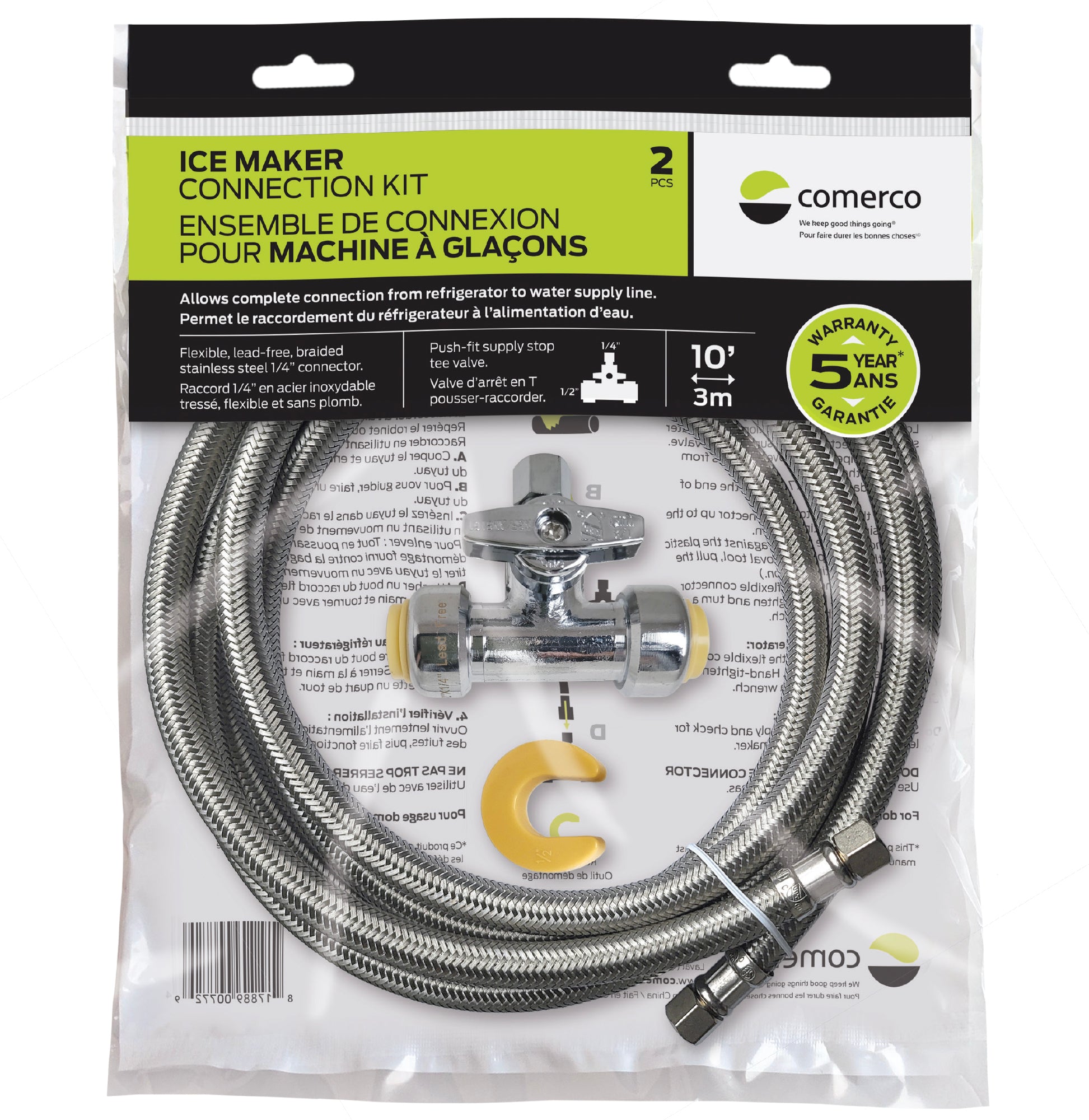

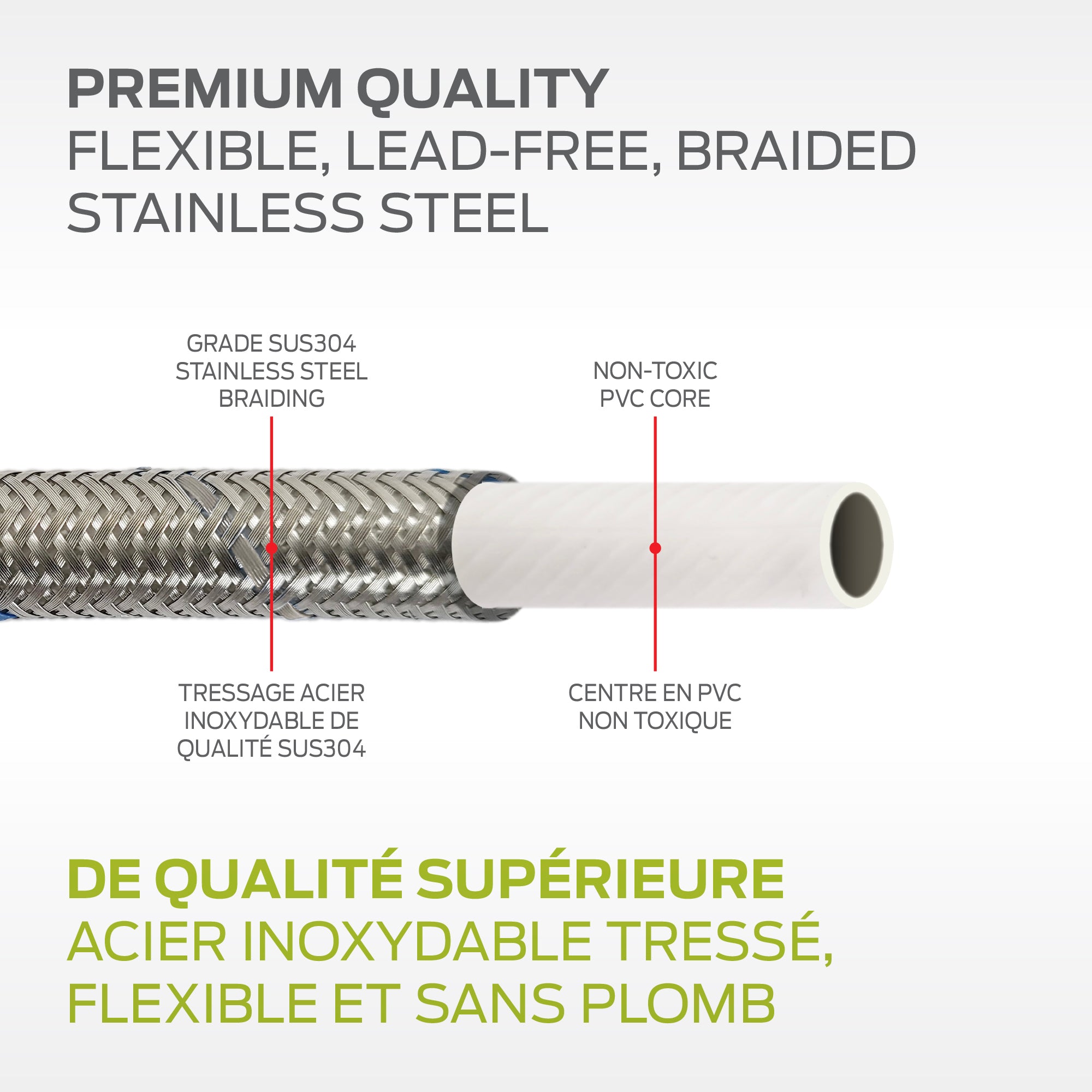

Our premium Ice Maker Connector Kit is the perfect solution for easy and reliable refrigerator water connection. This kit includes a 10' (3 m) braided stainless steel ¼ connector, a secure and leak-proof push-to-connect T-shutoff valve (1/4" to 1/2"), and a removal tool. Made with quality materials, such as flexible braided stainless steel and a PVC center, this connector kit ensures durability and longevity. It is lead-free, providing peace of mind for your family's health and safety. With UPC, NSF, and ANSI 61 certification, you can trust the quality and performance of our ice maker connector kit. Enjoy hassle-free installation and trouble-free operation with this premium connector kit.

1. Turn off the main water supply.

2. Connect to the water supply: Locate the faucet or connection for the water supply. Connect using the supplied tee valve.

A. Cut the pipe and remove any burrs from the end of the pipe.

B. For guidance, mark 7/8” from the end of the pipe.

C. Insert the pipe into the connector up to the mark, using a twisting motion. (To remove: While pushing against the plastic ring with the supplied removal tool, pull the pipe with a twisting motion.)

D. Attach one end of the flexible connector to the tee valve. Hand-tighten and turn a quarter turn with a wrench.

3. Connect to the refrigerator: Attach the other end of the flexible connector to the refrigerator’s inlet. Hand-tighten and turn a quarter turn with a wrench.

4. Check the installation: Slowly open the water supply and check for leaks, then operate the ice
maker.

DO NOT OVER-TIGHTEN THE CONNECTOR

Use with water in accessible areas.

For domestic use only
